Art.-Nr.1023087
EAN 1023087
Mondraker Raze Carbon R
Farbe: Silber/Orange
Größe: L

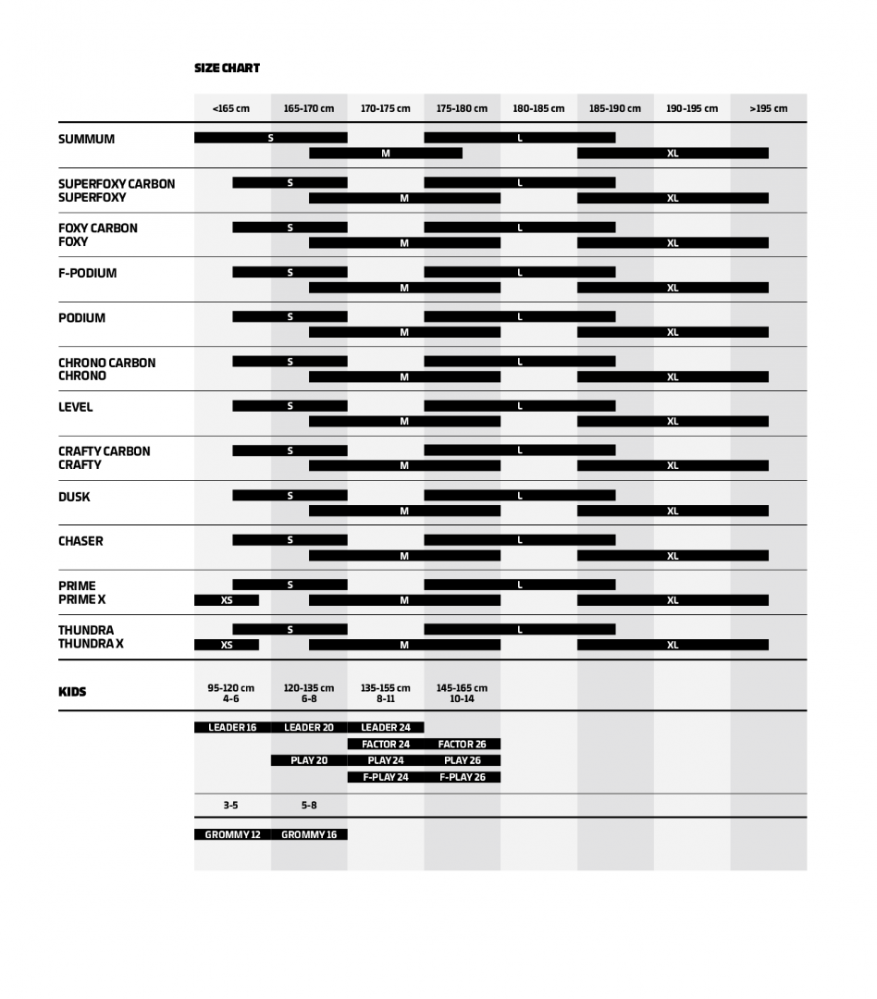

Empfohlene Körpergröße: 175 - 187cm

Voraussichtl. Liefertermin: 19.01.2023
   Voraussichtl. Liefertermin: 19.01.2023


statt 6.499,00 EUR (UVP) pro Stück (inkl. MwSt. zzgl. Versandkosten)

6.174,05 EUR

Sie sparen 5% (324,95 EUR)
Menge:

Produktdetails

- Rahmen: Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05
- Dämpfer: Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
- Gabel: Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
- Vorbau: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
- Lenker: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
- Griffe: Onoff Desert, 1lock-on, 135mm
- Sattelstürze: Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
- Sattel: Fizik Antares R7
- Bremse vorne: Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Bremse hinten: Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Felgen: Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
- Speichen: 24 straight-pull double butted spokes
- Reifen vorne: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
- Reifen hinten: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
- Kurbelgarnitur: Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
- Kette: Sram NX Eagle, 12s, Powerlock
- Schalthebel: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
- Kassette: Sram XG-1275, 10-52T, 12s
