Mondraker
Modell 2023

Mondraker Level R - L

Art.-Nr.1023374
EAN 8435392860598
Mondraker Level R
Farbe: Rot/Grau
Größe: L

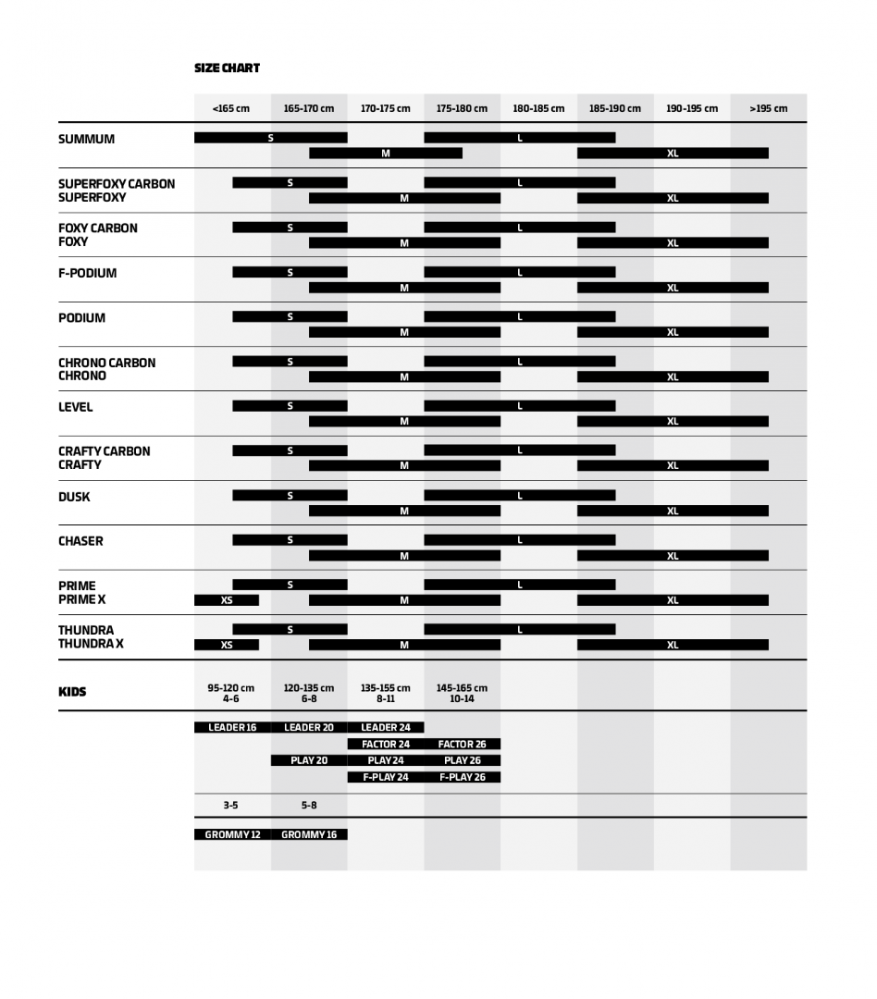

Empfohlene Körpergröße: 175 - 187cm

Voraussichtl. Liefertermin: 06.04.2023
   Voraussichtl. Liefertermin: 06.04.2023


statt 6.999,00 EUR (UVP) pro Stück (inkl. MwSt. zzgl. Versandkosten)

6.649,05 EUR

Sie sparen 5% (349,95 EUR)
Menge:

Produktdetails

- Rahmen: Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
- Dämpfer: Fox DHX Performance 2P, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
- Gabel: Fox 38 29 Float GRIP EVOL Rhythm, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
- Vorbau: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
- Lenker: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
- Griffe: Onoff Twin, 1lock-on, 135mm
- Sattelstürze: Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
- Sattel: FIZIK Terra Aidon X5 145mm
- Bremse vorne: Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Bremse hinten: Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Felgen: e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum
30mm internal width, tubeless ready, 28F / 32R spokes
- Speichen: e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
- Reifen vorne: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Reifen hinten: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Kurbelgarnitur: Race Face Aeffect ebike, 165mm
- Kette: Sram SX Eagle, 12s, Powerlock
- Schalthebel: Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
- Kassette: Sram PG-1210, 11-50T, 12s
- Motor: Bosch Performance Line CX Cruise (25Km/h) Smart System
- Batterie: Bosch Powertube 750Wh
- Display: Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
